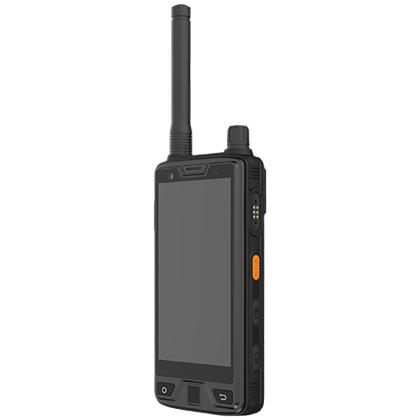

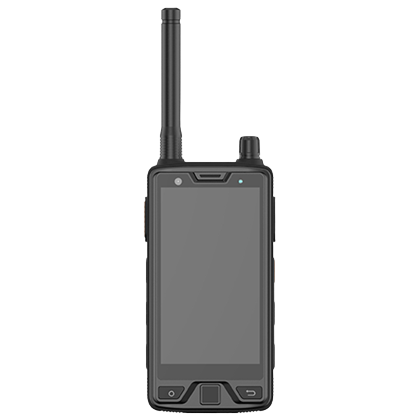

The CR1012P-AD-SG series 5G intelligent execution terminal adopts Qualcomm Snapdragon 5G series QCM6490 (QCS6490) with a 6-nanometer process design, Qualcomm ® Kryo ™ 670 CPU (1 x Gold Plus @ 2.7 GHz+3 x Gold @ 2.4 GHz+4 x Silver @ 1.9 GHz), built-in Qualcomm ® Adreno 643 GPU，812 MHz， Equipped with the Android 12 operating system, it has powerful performance, rich multimedia functions, a processor with a comprehensive computing power of 14 TOPS, encoding capability of 4K (H.264/H.265) @ 30 fps, decoding capability of 4K (H.264/H.265/VP9) @ 60 fps, in compliance with 3GPP Release 15 specifications, and supports 5G NSA and SA modes, backward compatible with 4G/3G networks. It also supports Wi Fi 6E&DBS, IEEE 802.11a/b/g/n/ac/ax, Wi Fi 2 × 2 MU-MIMO, and Bluetooth 5.2 technologies; At the same time, the terminal integrates intelligent algorithms, a 48 million high-definition rear camera, an 800W high-definition front camera, and a high brightness 5.0-inch display screen, providing a friendly human-computer interaction interface; Integrated high-definition video wireless network real-time upload, local storage, cluster voice, and visual intercom functions, suitable for emergency command and mobile monitoring command management systems such as public security and law enforcement, traffic police patrols, individual combat, fire rescue, urban management and law enforcement, insurance claims, and news live broadcasts.

▶ Network function: Supports wireless transmission, supports a complete TCP/IP protocol suite, enables device access to the platform, and transmits video, audio, alarm, positioning, and other data through the network;

▶ Wireless function: Supports any network of 3G/4G/5G; Supports WIFI and Bluetooth;

▶ Digital analog integrated intercom: optional DMR digital analog two in one function, supporting standard definition of all voice and data services, as well as various encryption methods, high-power 2W, low-power 1W, U segment 400-470MHz, customizable police 350-400MHz, V segment 136-174MHz

▶ Dual stream: Supports local dual stream high-definition storage and network dual stream transmission;

▶ WiFi: 2.4&5&6 GHz, 2x2 MU MIMO, 802.11 a/b/g/n/ac/ax supports DBS, supports hotspot network sharing;

▶ Dual card design: 5G full network dual card dual standby;

▶ Voice intercom: supports full duplex voice intercom between devices and platforms;

▶ Positioning function: comes standard with pure BD positioning, and can be customized with GPS/GLONASS/BD, L1+L5GPS positioning modules. At the same time, with the assistance of base station positioning function, it can accurately locate the geographical location of equipment with high accuracy;

▶ Bluetooth: Built in Bluetooth 5.2, can be connected to external Bluetooth earphones for intercom, and can be extended to other Bluetooth devices such as printers, card readers, etc;

▶ Manual alarm: supports one click manual alarm with buttons, and reports to both platform and cluster users simultaneously;

▶ Storage: The device is equipped with 64GB Flash (customizable 128GB), expandable dual 512GB TF cards to meet high-definition storage requirements, and can be customized with State Grid encryption and Ministry of Public Security encryption authentication functions;

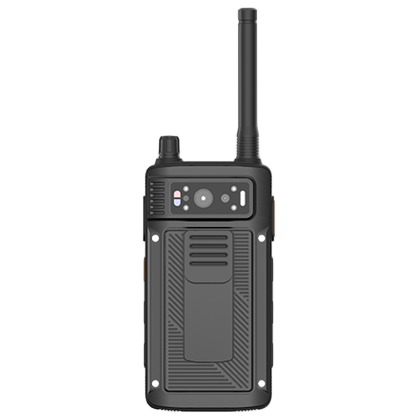

▶ Built in camera: Built in 4800W high-definition rear camera+800W high-definition front camera for high-definition monitoring, customizable 200W global camera for high-speed capture;

▶ External camera: supports external HDMI high-definition cameras and DV cameras, with encoding capability up to 4K;

▶ Video recording: supports one click recording with device buttons;

▶ Capture: Supports one click capture with device buttons;

▶ Display screen: 5.0-inch 720 * 1280 high-definition video display screen with high brightness;

▶ Touch screen: 5.0-inch capacitive multi-point touch screen;

▶ Gravity sensor: When the device falls, it will generate an acceleration alarm to ensure the security of data information;

▶ Flash: Built in LED high brightness flash, used as a flashlight;

▶ Infrared light: supports infrared night vision;

▶ Laser lamp: positioning laser lamp, irradiation distance of 20 meters

▶ Status lights: charging red light, fully charged green light

▶ Flashing lights: red and blue flashing lights, used for various warnings

▶ System settings: Supports volume, brightness, time WIFI、 Bluetooth and other system function settings;

▶ Cluster intercom: Implement multi-party cluster voice, video, document, and short message applications within the group

▶ Visual intercom: realize bidirectional video and audio applications between devices;

▶ File management: Manage and use device files, implement file upload platform, edit, delete, etc;

▶ Security management: Security user management, enabling different users to have different usage permissions for easy management and maintenance.

Suitable for various industries such as patrol duty, criminal investigation and undercover investigations, insurance claims, real-time reporting by news media, and individual field operations

Traffic police duty: monitoring and recording speeding and violation incidents, supervising the law enforcement process

Urban management law enforcement: supervision and evidence collection during the law enforcement process

Security patrol: maintaining public security in important places, conducting temporary mobile investigations, on-site law enforcement and evidence collection, etc. The command center comprehensively grasps the overall situation of the scene through remote video, facilitating decision-making and command

Field Operations: When a single soldier engages in field operations, the real-time footage of the battlefield can be transmitted back to the command center, allowing the rear to understand the situation of both sides at any time and arrange strategic deployments in a timely manner

Emergency command: For example, emergency command for natural disasters, social public safety incidents, etc., the video of the emergency scene can be transmitted back to the emergency command center in real time. The emergency command center can have two-way communication with the front end, and the command front end can be made into some emergency handling
