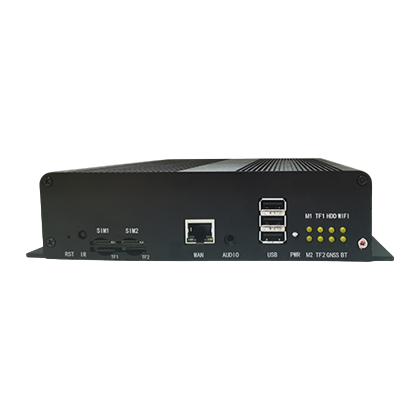

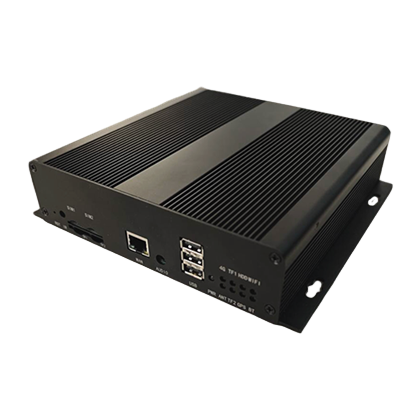

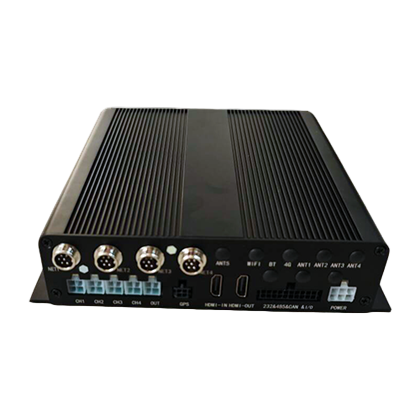

Product Introduction
The intelligent high-definition car hard disk recorder is a specialized NVR product for car video and audio monitoring that uses an embedded Linux operating system. It supports IPC access, AHD access, HDMI high-definition video access and output, high-definition video and audio encoding and decoding, 4G/5G/WIFI wireless network transmission, BD/GPS satellite positioning, Bluetooth support, data security storage, cluster intercom, facial recognition, license plate recognition, remote command and dispatch, alarm input and output, and extended serial port peripheral access. It fully meets the needs of all-weather monitoring under various driving conditions and can be used in multiple car mobile video monitoring fields such as law enforcement, traffic patrol, security, emergency command, etc.
performance advantage
▶ Supports 1 HDMI 4K high-definition video input, 4 AHD and 4 IPC channels, expandable to 8 IPC channels
▶ Supports H.265/H.264 standard bitstreams
▶ Supports 1 CVBS and 1 HDMI video output
▶ Supports dual hard drives, with a maximum capacity of 8TB
▶ Supports dual TF cards, up to 512GB
▶ Support facial and license plate recognition and capture, as well as helmet and smoke recognition
▶ Support two-way voice intercom function
▶ Built in 4G/5G/WIFI wireless module, providing flexible wireless transmission solutions
▶ Support GPS/Beidou positioning
▶ Support vehicle wide voltage input (DC 8~36V) to meet the requirements of automotive electrical characteristics
application field
The route has been extended, the number of train trips has increased, personnel are dense, and the space is enclosed. The wireless monitoring system on the bus is equipped with cameras, on-board display screens, emergency alarm buttons, and pickups to collect and store video, audio, and GPS information, display it locally, and transmit it to the emergency command and dispatch center of the bus company through the built-in wireless module of the intelligent high-definition on-board hard disk recorder host, achieving unified dispatch.
◆ Special police patrol
For special police officers who perform urgent, difficult, dangerous, and heavy tasks, due to the special nature of their tasks, there are high requirements for operational safety and on-site event handling. The installation of intelligent high-definition onboard hard disk recorders can meet the real-time, high-definition, remote assistance, and review requirements of special police patrol vehicles.
◆ Long distance passenger transportation
The installation of intelligent high-definition onboard hard disk recorders on long-distance passenger vehicles mainly collects videos from inside and outside the vehicle, and monitors the real-time situation of passengers, drivers, and the process of vehicle travel. The transportation management department and passenger transport company command and dispatch personnel can track the vehicle in real time through the backend monitoring command center.
◆ Road Administration Inquiry
Installed on urban management law enforcement and road enforcement vehicles, it can transmit real-time video images of the law enforcement scene ahead to the monitoring center, facilitating the retention of law enforcement data and the viewing and remote assistance of leaders and dispatchers. At the same time, it also plays a supervisory role in civilized law enforcement.
Application Cases
